SView-PC

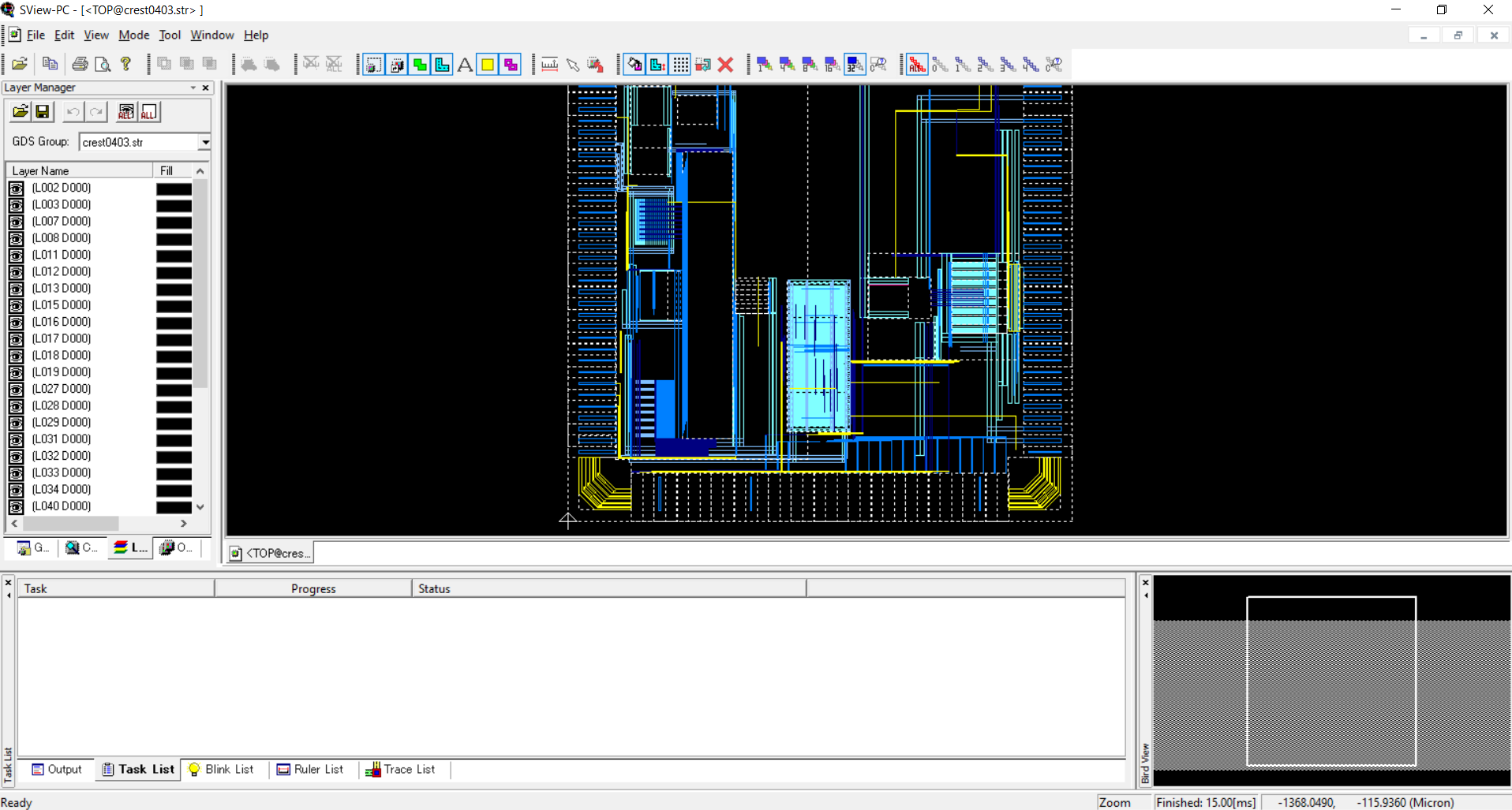

SviewPC Image

Overview

SviewPC offers high-speed display of CAD data, making it easier than ever to inspect and analyze layout data. With advanced tools for equipotential node tracing and result highlighting, SviewPC provides the precision and efficiency needed for critical LSI design tasks.

Features

  • Overlay display function for CAD data.
  • Snapshot function for capturing and saving views.
  • Display logical operations between two GDS files.
  • Bird’s-eye view display of GDS data.
  • Path tracing function for tracking and highlighting equipotential nodes.
  • DRC (Calibre) interface with PAN and highlighting of error locations.
  • GDS output function for logical operation results and individual cell outputs.
