Pattern Generator for
Silicon Photonics Design

LightParts can easily generate patterns for designing the silicon photonic devices.

Pattern data will be generated in DXF format, so you can directly use the data in other CAD software.

Key Features

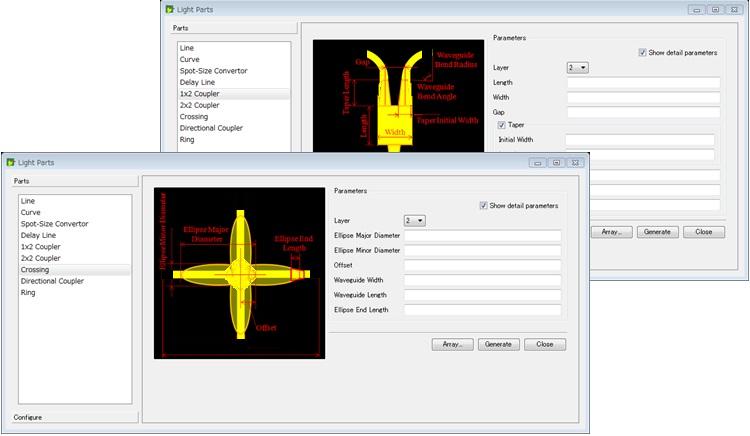

  • Easy Operation: Just input parameters of desired shape to generate patterns.

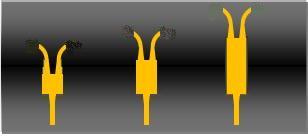

  • You can input multiple parameters to generate variety of patterns at once.

  • You can add original photonic devices patterns. (optional)

Operating Environment

OS Windows 7
