DXF to GDS Converter

Dvogue converts DXF format data to GDS format data, and generates masks from converted data. With GDS format data, you will be able to use variety of inspection tools to increase the accuracy of analysis. (i.e. DRC, path delay analysis)

Key Features

  • Easy Rule Settings: There's no complex settings for converting the data.
  • Compatible with 64bit OS: Conversion of large sized data can be done quickly.

Polygon De-Embedding

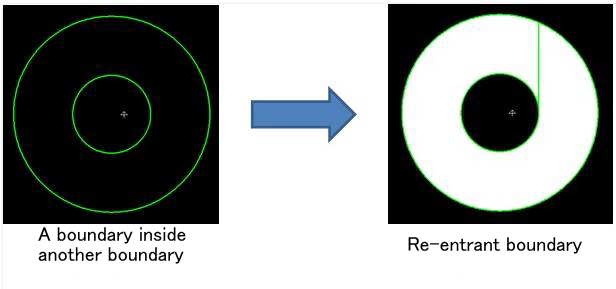

Dvogue automatically detects the overlapped polygons and changes to re-entrant boundaries, when converting DXF data to GDS format. This is very useful because GDS cannot draw boundary within another boundary. Dvogue helps reduce turnaround time and raise your productivity.

Operating Environment

OS Windows 7 (32bit/64bit)
